CQE15R | Reach Stacker | 3,300lbs
CQE15R | Reach Stacker | 3,300lbs
Regular price
$22,000.00 CAD
Regular price
Sale price
$22,000.00 CAD
Shipping calculated at checkout.
Couldn't load pickup availability

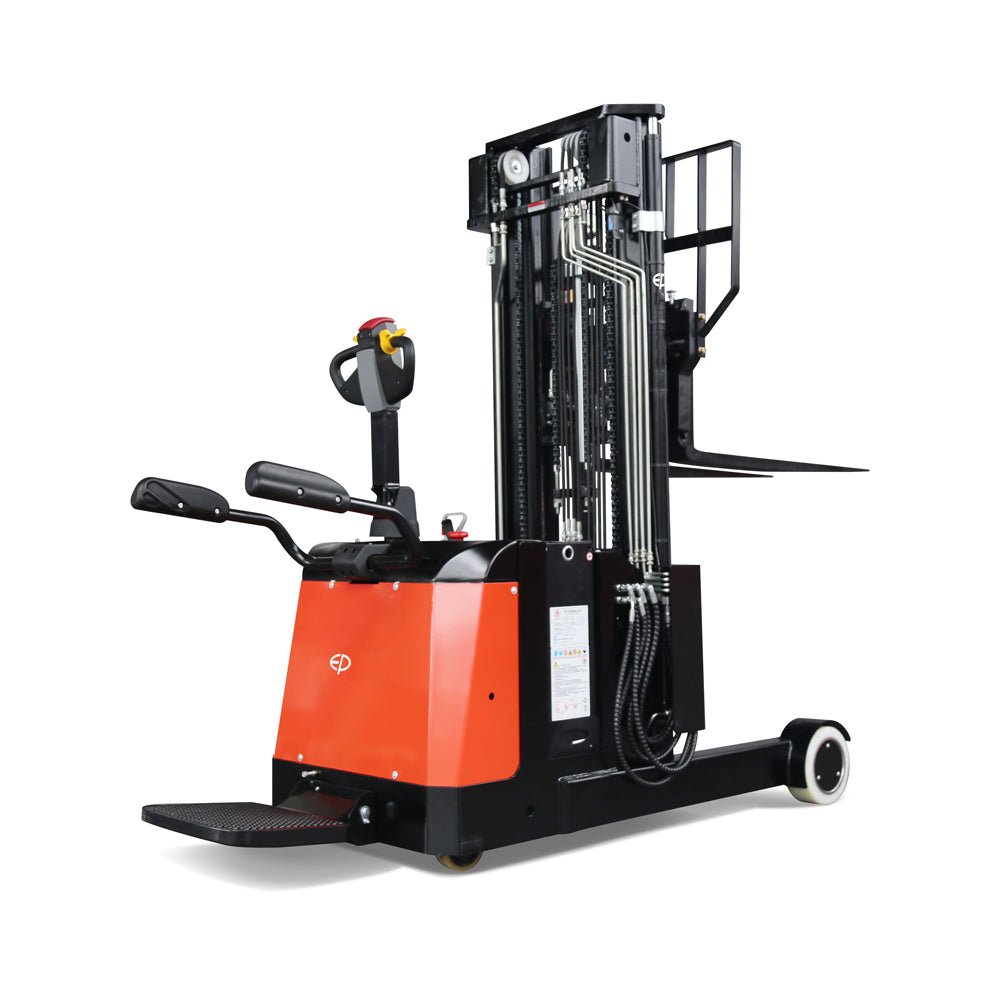

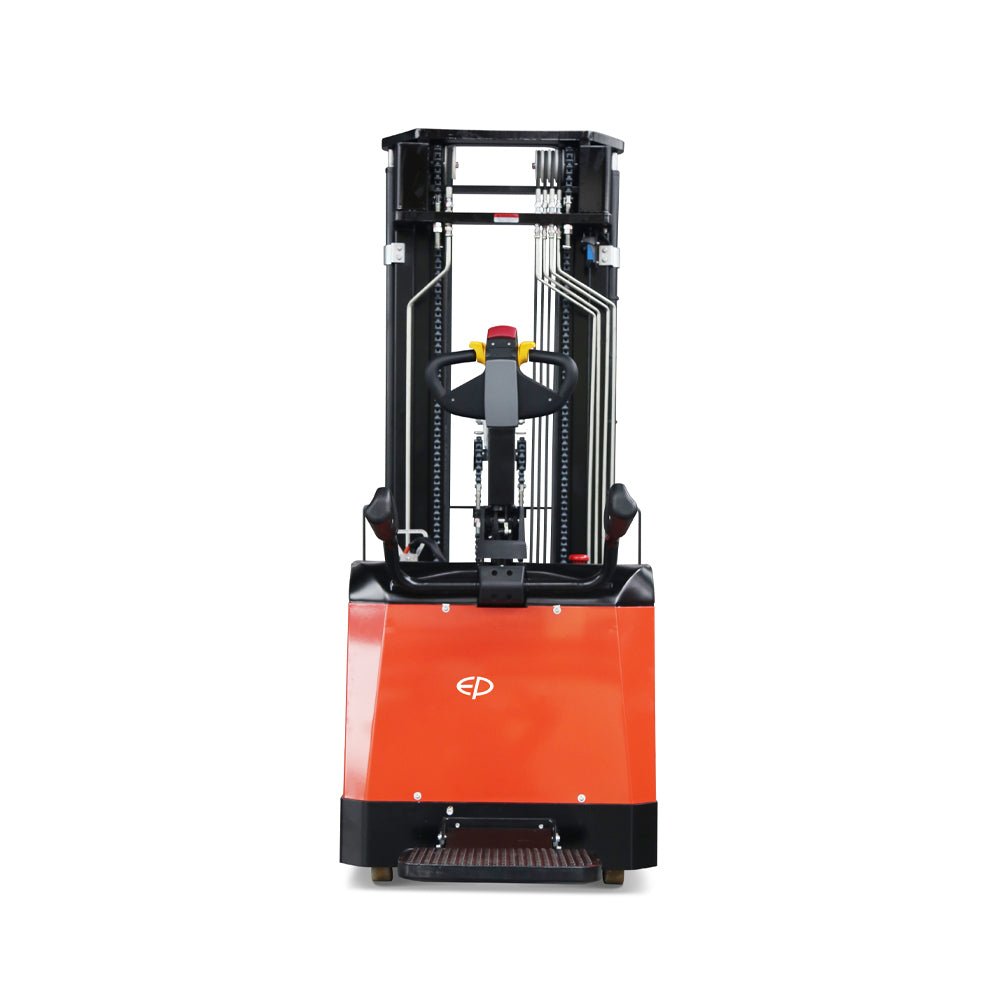

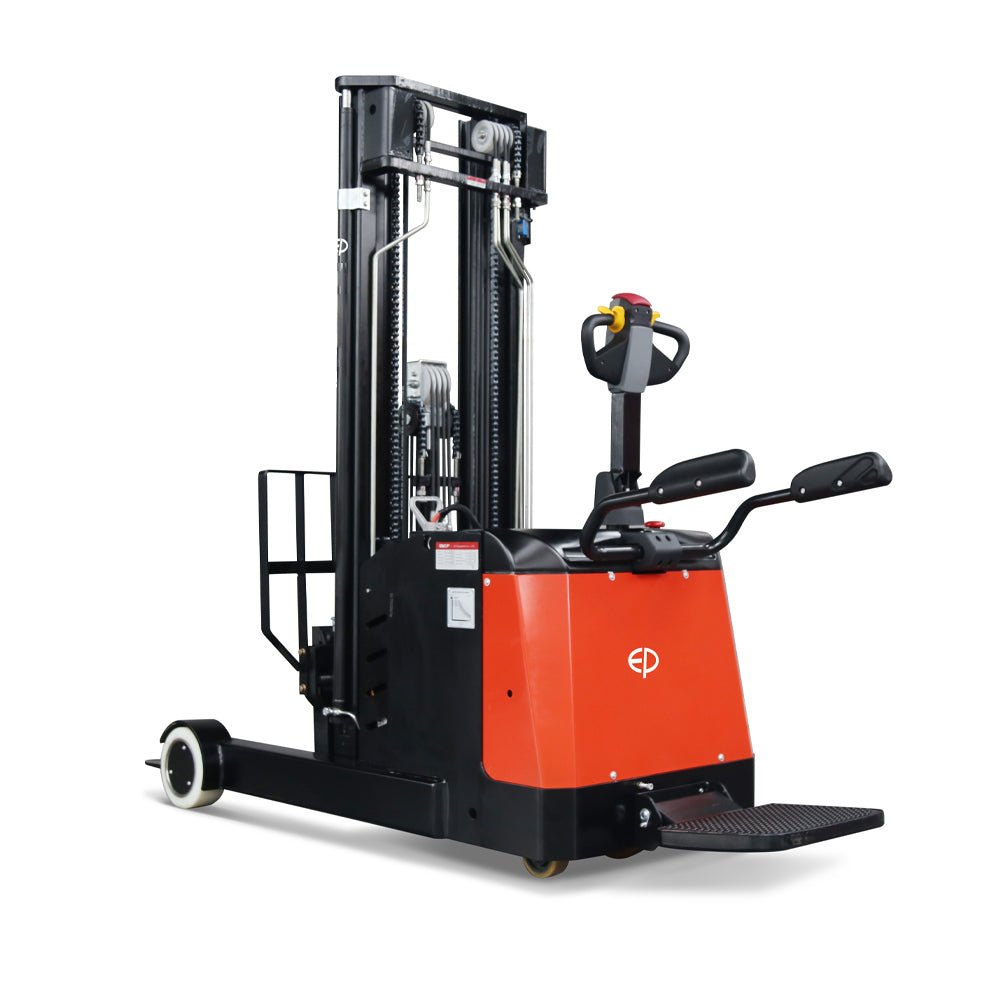

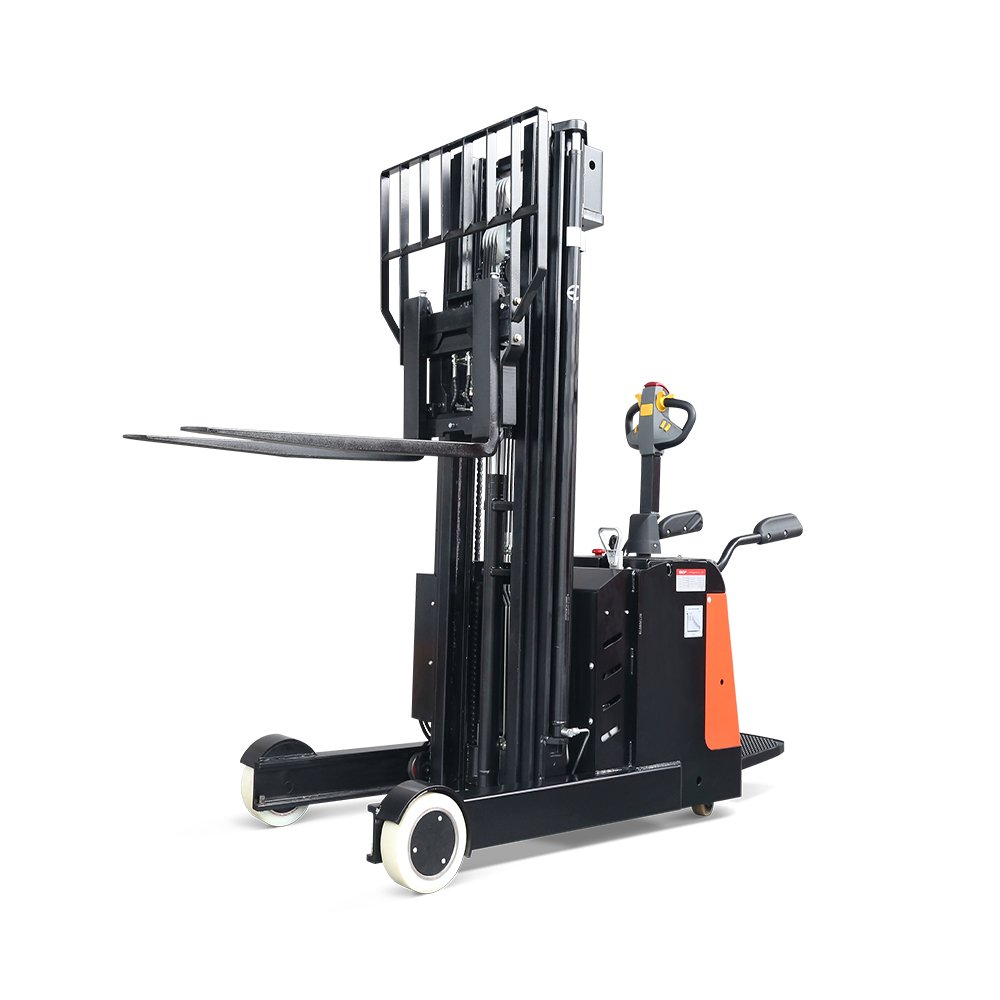

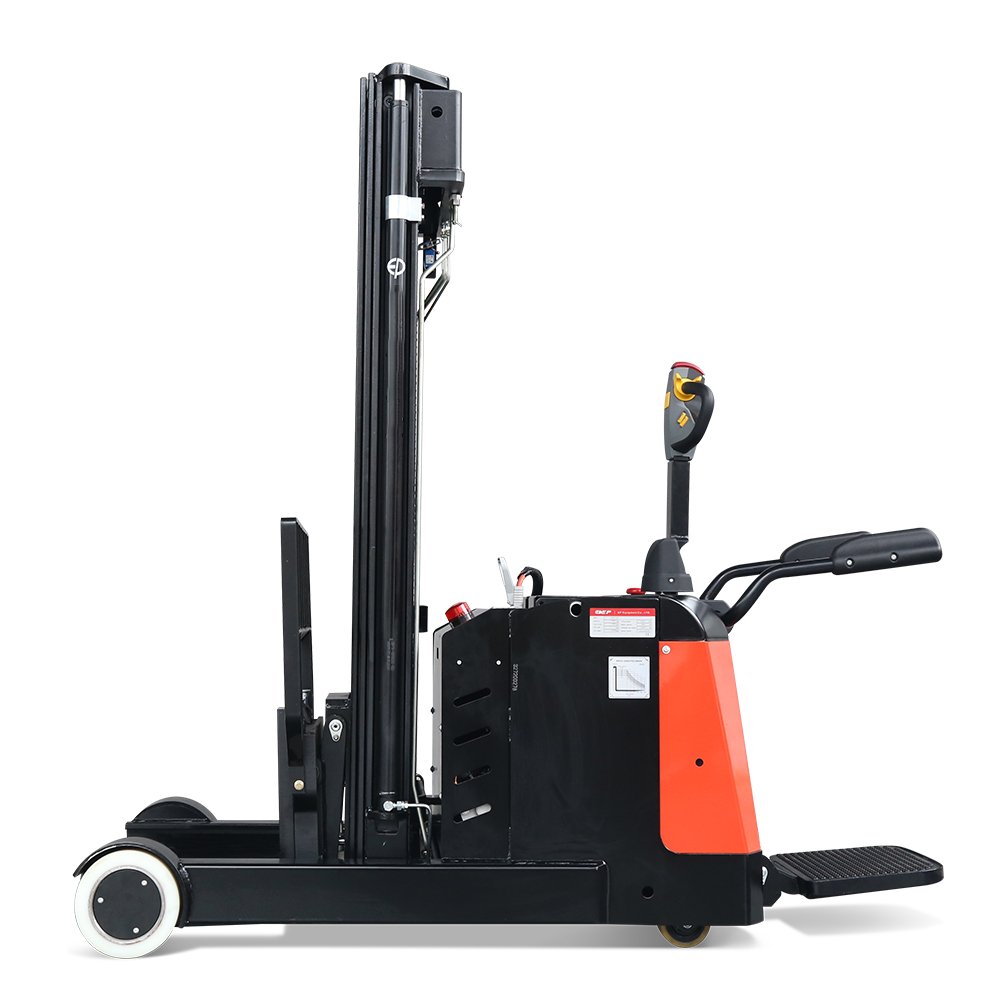

CQE15R Electric Reach Stacker
Compact reach stacker with innovative AC drive system, reinforced mast design, and low‑noise hydraulics — engineered for precise control, durability, and reliable performance in demanding warehouse environments.
Key Features & Specifications
Load capacity1,500 kg (≈ 3,300 lbs)
Load centre distance500 mm
Service weight1,955 kg
Lift height3,000 mm (≈ 9.8 ft)
Overall length2,332 mm
Length to face of forks1,262 mm
Turning radius1,697 mm
Battery (standard)24 V / 280 Ah (lead‑acid)
Battery (option)Li‑ion pack available
Estimated runtimeUp to 8 hours per charge (duty‑cycle dependent)
Drive systemInnovative AC system for strong power and accurate control
GearboxHigh‑strength vertical gearbox for longer service life
HydraulicsLow‑noise, durable hydraulic unit
Electrical systemAMP connectors reduce risk of electrical failure
Mast designH‑shaped mast channel for improved strength and stability
Safety featuresEmergency stop, stable chassis, protective covers
MaintenanceEasy‑access components; reduced upkeep with AC drive
ChargerExternal smart charger; fast‑charge options available
ApplicationsWarehouse stacking, narrow aisle operations, retail backrooms
Contact & Product Resources
- Inquire/Purchase: Message us via live chat or contact form
- Support: On‑site parts & service during warranty
