Scissor-Reach Series
Rated Capacity 1,360 kg / 3,000 lbs
Max Lift Height Up to 5.5 m / 18 ft
Power System 24V / 280Ah Lead-Acid

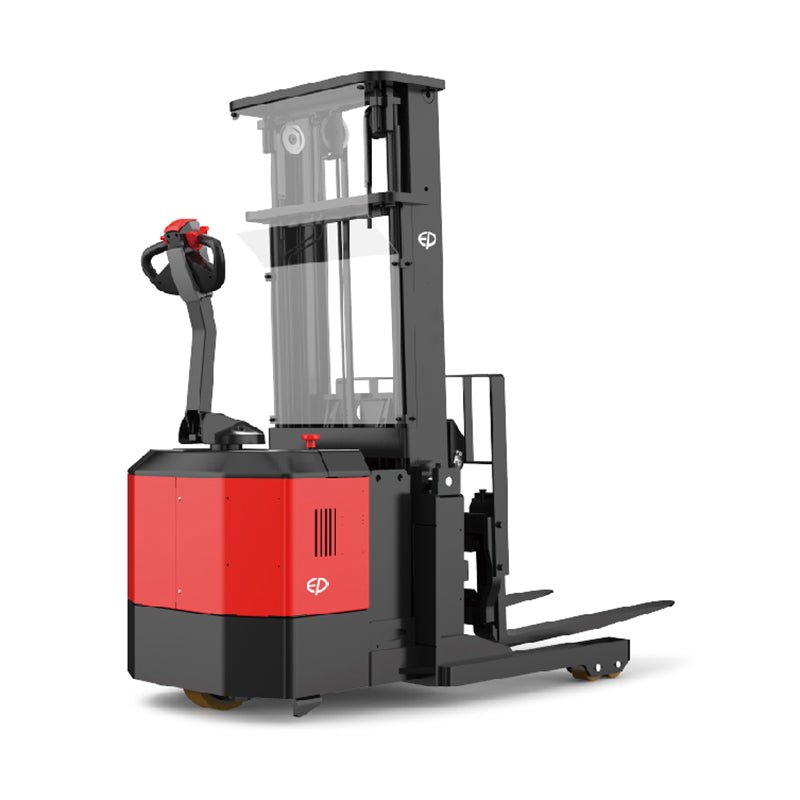

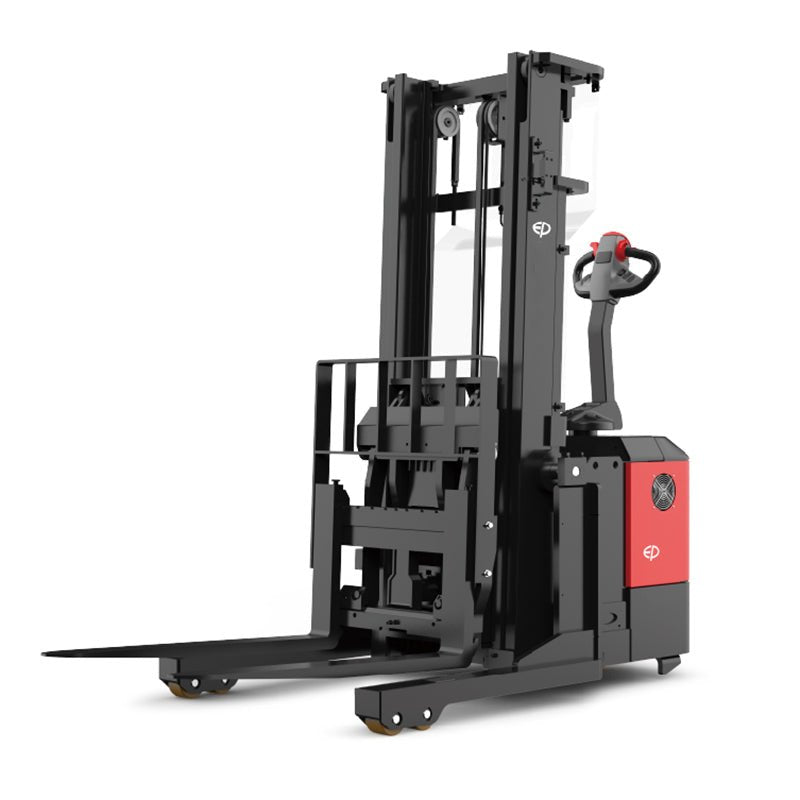

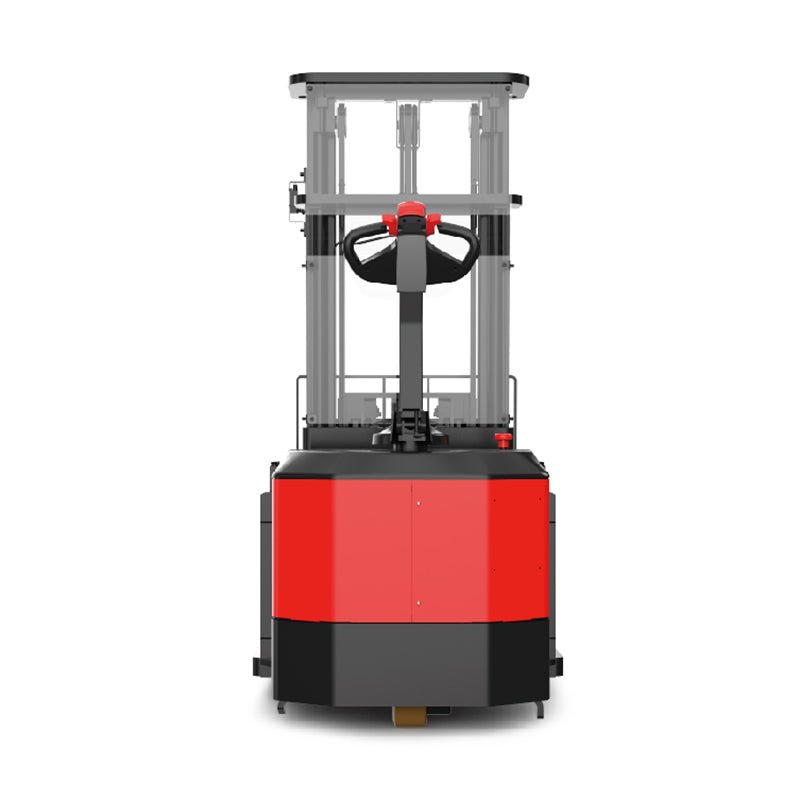

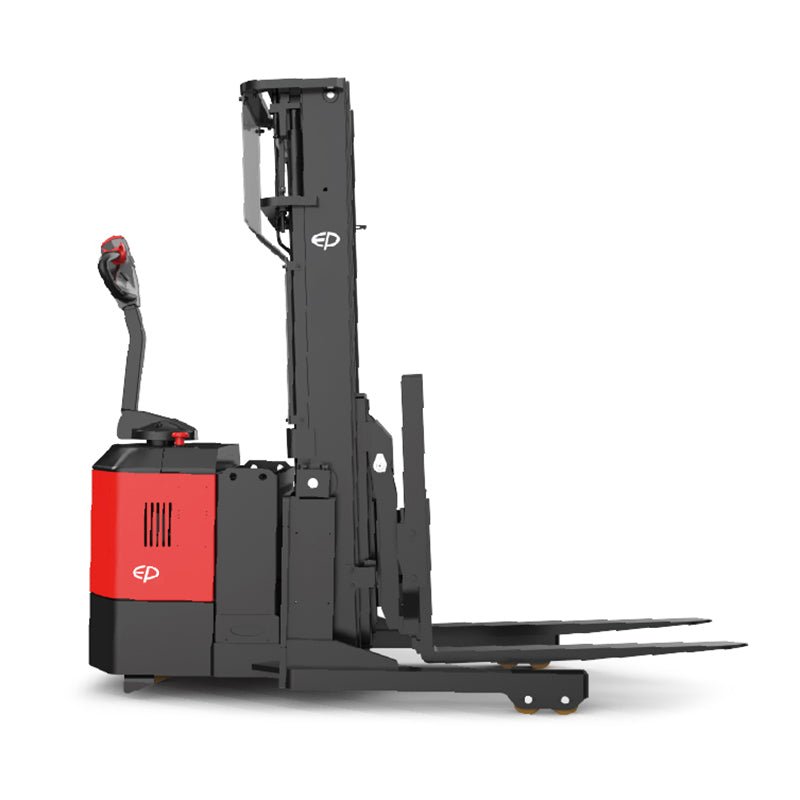

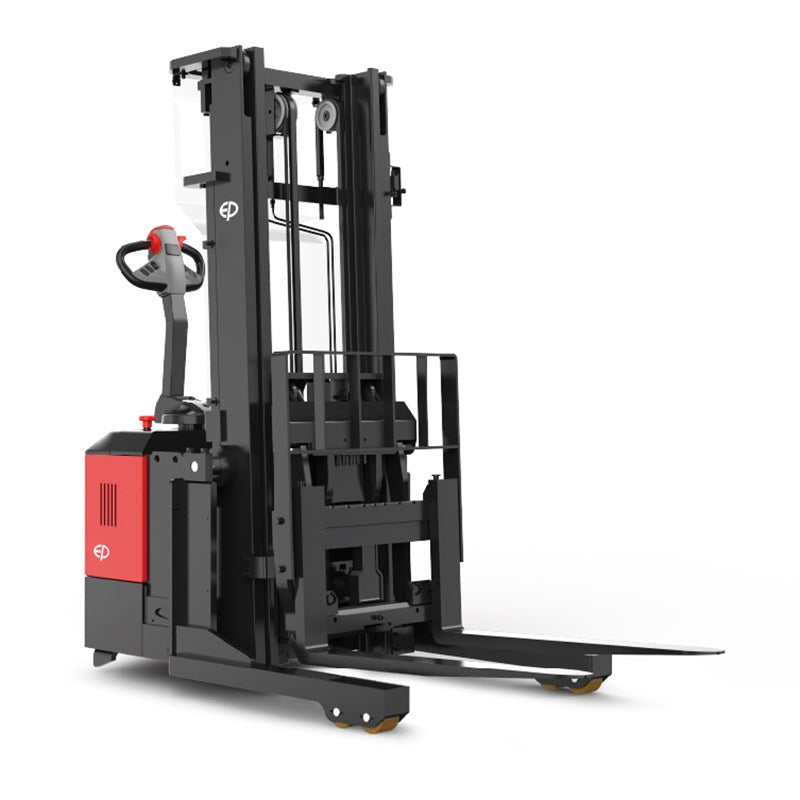

Tiger PDSR | 3,000 lbs Electric Scissor Reach Stacker
The versatile hybrid solution for high-density racking. Featuring a heavy-duty pantograph scissor mechanism, the PDSR extends loads beyond the straddle legs, delivering the reach of a forklift with the agility of a walkie stacker.
Precision Engineering & Reach
Scissor Pantograph
The hydraulic scissor mechanism extends the carriage 610mm forward, allowing you to pick or place pallets deep into racking without moving the base of the unit.
Advanced AC Control
Equipped with a ZAPI AC Traction Controller for smooth acceleration and precise proportional lift/lower speeds, essential for handling loads at 18ft heights.
Power Steering (EPS)
Standard electronic power steering reduces operator fatigue in narrow aisles, allowing for effortless 180Ā° turns even when fully loaded at 3,000 lbs.
Technical Specifications
Load Capacity1,360 kg (3,000 lbs)
Reach Distance610 mm (24") Pantograph Stroke
Mast TypeTriplex Full Free Lift available
Battery System24V / 280Ah (Industrial Lead-Acid)
Travel SpeedUp to 5.5 km/h (3.4 mph)
Turning Radius1,700 mm (67")
Drive Motor1.5 kW AC Vertical
ControllerZAPI AC-1
Technical & Support Resources
Logistics & Fulfillment
The PDSR is a high-performance industrial unit that requires professional setup. This model ships fully assembled. Local pickup is available at our Scarborough facility.
